Paper Stock | Ticket Security | Ticket Printing Process | Ticket Specifications | Prepress Specifications | Typical RFID Layouts

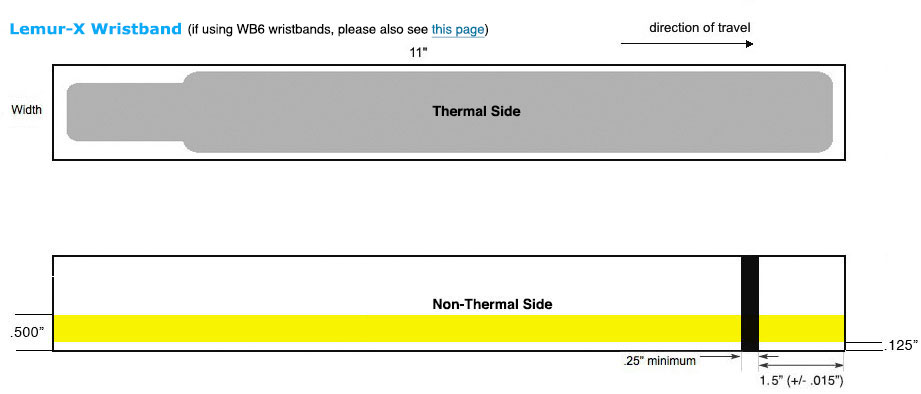

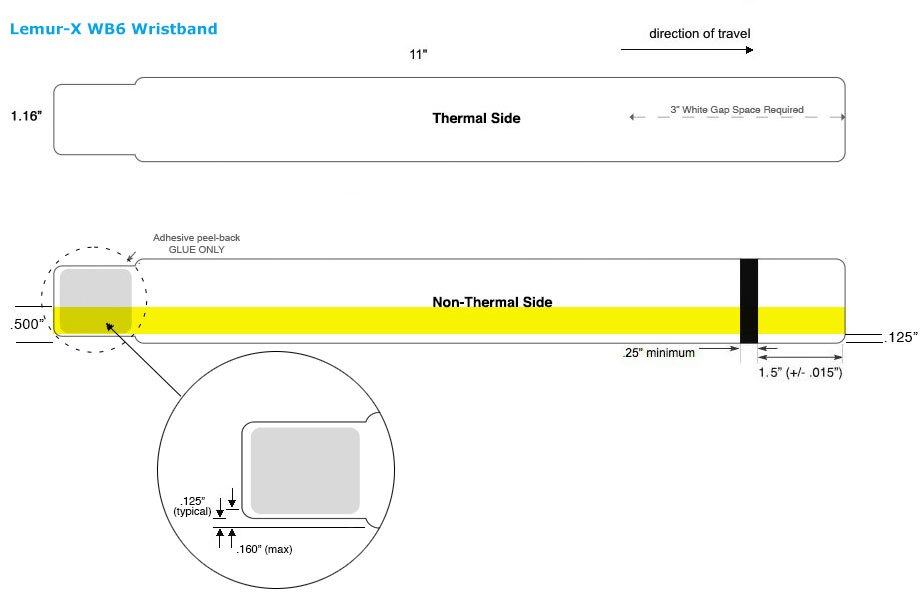

Lemur X Layout





all tolerances are +/- .005" unless otherwise noted

  1. No black ink or hole punch can appear in shaded zones
  2. Black mark should have a minimum PCS of 90% in the infrared range
  3. Background area in line with black mark should have a maximum PCS of 20% in the infrared range
  4. Ticket width = 2.00", 2.12", 2.50", 3.00", 3.25"; Wristband width = 1", 1.16", 1.328" (all dimensions are +.000", -.030")


BocaSystems


Ticket Specifications - Lemur-X Layout
