all tolerances are +/- .005" unless otherwise noted

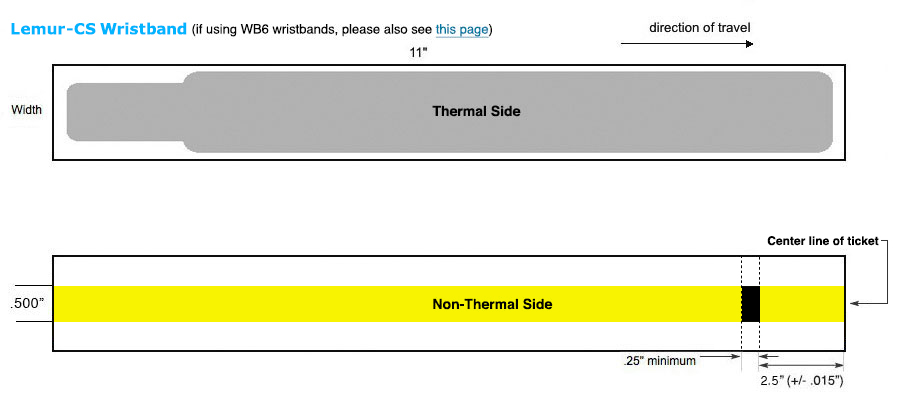

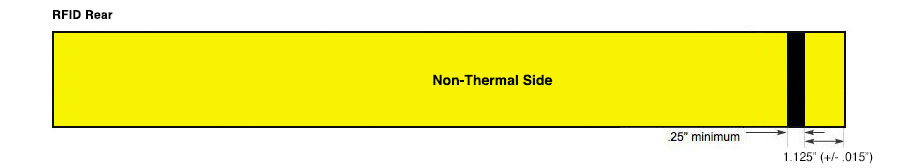

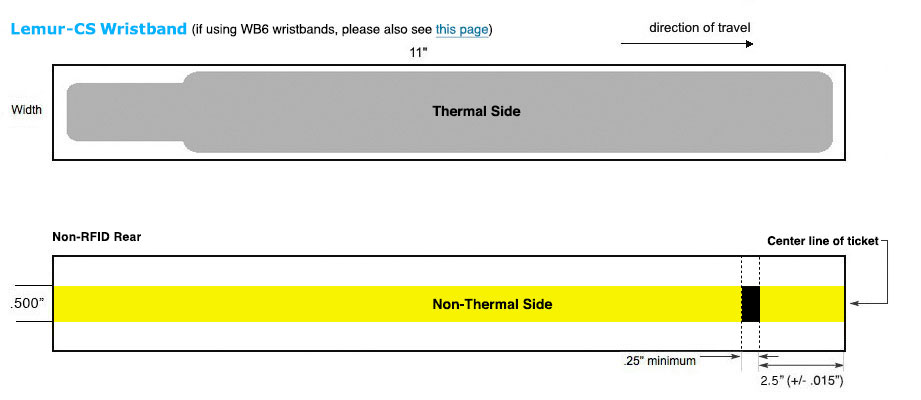

NOTE: The default location of the black mark is at the center of the ticket. The black mark must be at least .500” high and can be positioned anywhere within the dashed line. If the black mark moves away from the center line of the ticket/wristband, the yellow shaded area must remain in line with the black mark.
|
- No black ink or hole punch can appear in shaded zones
- Black mark should have a minimum PCS of 90% in the infrared range
- Background area in line with black mark should have a maximum PCS of 20% in the infrared range
- Ticket width: 2.00" to 3.25"; Wristband width: 1.00" to 1.328"
